TFS Structure





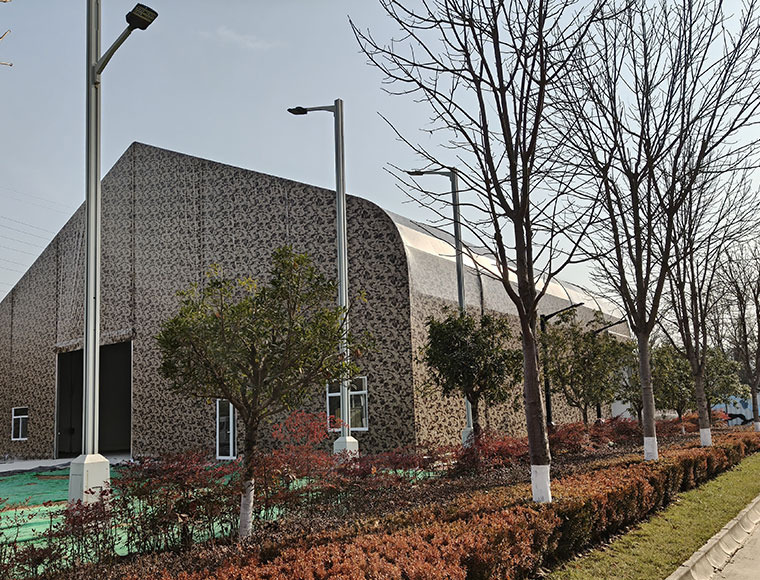

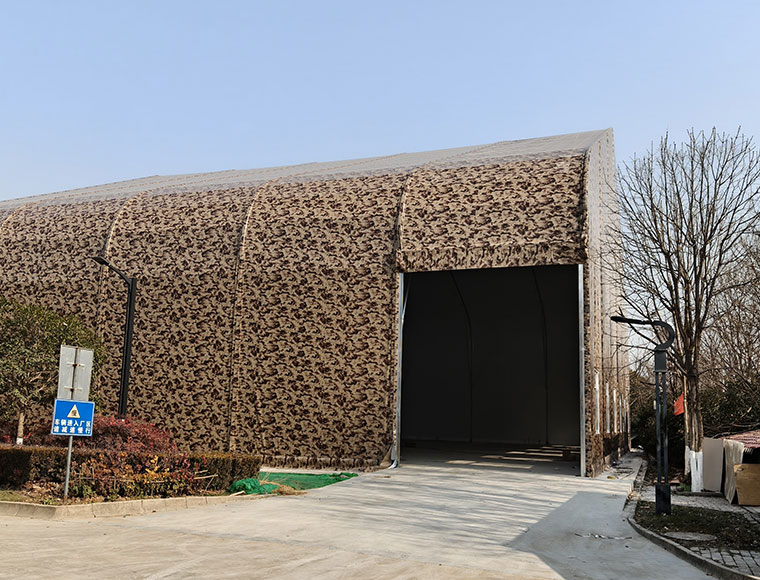

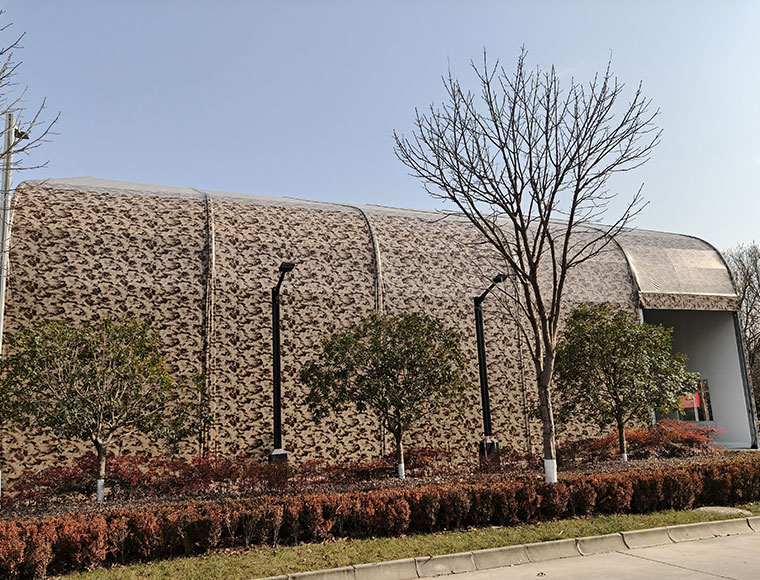

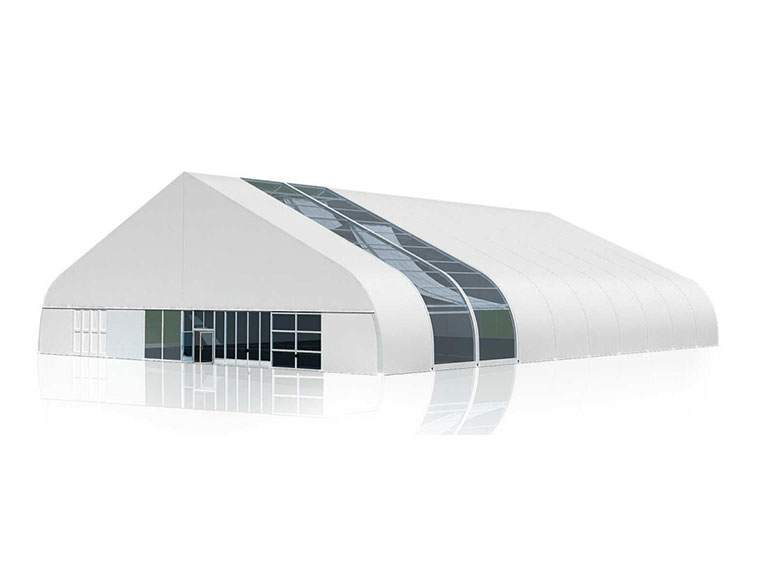

The KENTEN TFS Structure is a heavy-duty, industrial-grade tent system purpose-built for large-scale, demanding applications. With its arched roof profile and reinforced 6061-T6 aluminum alloy frame, it offers superior wind and snow resistance while delivering a sleek, modern appearance. The unique arch design maximizes interior height and clearance, making it the perfect choice for aircraft hangars, logistics centers, industrial workshops, and high-volume warehouses. Designed for long-term performance and all-weather durability, the TFS Structure combines structural strength with the flexibility of a modular system—making it as versatile as it is robust.

INQUIRY ONLINE

Features
Specifications
Why Choose Us
Applications
Cases
FAQ

Features

Curve Roof Engineering

Aerodynamic profile deflects wind and sheds snow more efficiently than traditional flat or A-frame designs.

Heavy-Duty Load Capacity

Tested and engineered to withstand winds up to 120 km/h and significant snow loads.

Maximum Interior Volume

The high-arched roof allows for large equipment, tall racking systems, and unrestricted movement inside.

100% Usable Floor Space

Clear-span design eliminates center poles, giving you full operational flexibility.

Modular & Scalable

Expandable in 5-meter bay intervals to match your operational growth and changing needs.

All-Weather Operation

Performs reliably in extreme temperatures and climates, with optional insulation and HVAC for year-round use.

Industrial Customization

Choose from cargo doors, rolling or sliding entries, ventilation systems, and reinforced wall options for specialized applications.

Specifications

Span Width	Ridge Height	Bay Spacing	longest Component
8.00 m	6.60 m	5.00 m	7.50 m
10.00 m	7.10 m		7.40 m
15.00 m	8.20 m		7.40 m
20.00 m	9.40 m		7.30 m
25.00 m	10.50 m		9.90 m
30.00 m	11.70 m		9.9 m
40.00 m	14.10 m		11.00 m
50.00 m	16.40 m		11.50 m
60.00 m	18.80 m		11.50 m

Aluminum Alloy Frame Material
Structure Frame Material	4 channels, Hard Pressed Extruded Aluminium Alloy 6061/T6
Main Profile Size	20 M:200 x 120 x 4 x 4.5 MM 25 M: 250 x 120 x 4 x 6 MM 30 M:300 x 120 x 5 x 7 MM 35 M:300 x 120 x 5 x 7 MM 40 M:300 x 120 x 5 x 7 MM, 350 x 120 x 5 x 7 MM
Eave Connection/Fixing	Hot-dip galvanized twin plate; Ground stakes or weight anchoring upon request

For More Information, Please Contact Sales Manager.

KENTEN TFS Structure VS Regular TFS Structure

	KENTEN Structures	Others
Aluminum	6061 T6 / 6082 T6	6063 T5 / 6005 T5
PVC Fire Retardant	B1,M2	B2
Wind Resistance	Up to 120 km/h	Up to 80 km/h
Lifespan	20 Years (Frame)	10 Years (Frame)

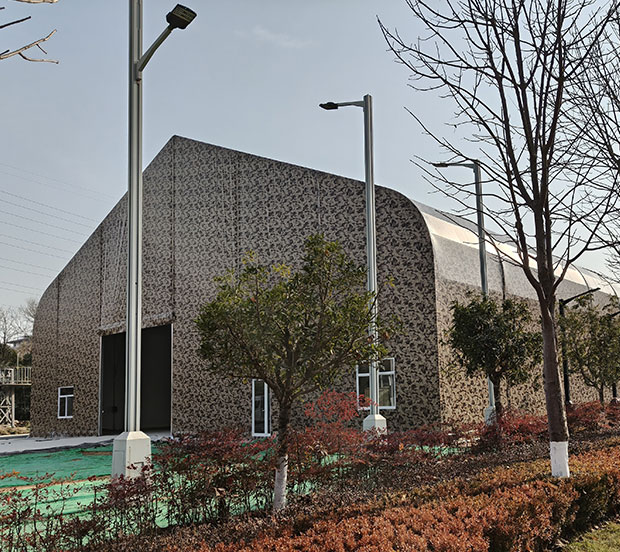

Why Choose KENTEN TFS Structure?

Industrial-Grade Design

Built for the most demanding environments with exceptional wind and snow load performance.

Superior Clearance

Accommodates aircraft, heavy trucks, and large-scale industrial machinery with ease.

Rapid Deployment

Prefabricated modular components allow for quick installation, relocation, or expansion.

Weather-Ready

Fully functional in hot, cold, humid, or windy regions.

Custom Solutions

Tailored to your project with personalized entry systems, wall materials, and climate control.

Applications

Aircraft Hangars

Industrial and Mining Workshops

Warehousing & Storage Facilities

Military Shelters & Temporary Bases

Video

Our Cases

Every solution put into practice is a precise match between scenario and need

2022 Formula 1 Miami Grand Prix

19th Asian Games – Hangzhou 2023

2008 Beijing Olympic Games

2022 Beijing Winter Olympic Games

2022 Formula 1 Montreal Grand Prix

2025 Doha Photography Exhibition

2025 Formula 1 Canadian Grand Prix

American Customer Customized Atrium Tent For Wedding

Customized Atrium Wedding Tent

Customized Warehouse Project For Chilean Customers

Customized Warehouse Project for Chilean Client

Toyota New-Car Launch Event

Frequently Asked Questions About TFS Structure

Q1: What makes TFS different from standard tents?

A: TFS structures feature a curved roof and reinforced frame, allowing them to support higher wind and snow loads compared to standard A-frame tents.

Q2: Can TFS Structures be used as permanent buildings?

A: Yes. With the right accessories like insulation, rigid panels, and HVAC, TFS tents can serve as semi-permanent or long-term facilities.

Q3: How long does installation take?

A: Depending on the size and site conditions, a 30 x 50 m TFS tent can be installed in 3~5 days by a professional crew.

Q4: Are these structures relocatable?

A: Absolutely. Despite their strength, TFS tents are modular and designed to be dismantled and reinstalled multiple times.

Q5: What customization options are available?

A: You can choose door types (rolling, sliding, or industrial), add lighting, ventilation, insulation, wall materials (PVC or steel), branding, and more.
