| Item | Specification |
| Clear Span Width | A Frame Design: 10 m/15 m. Flat Roof Design: 20 m/25 m/30 m. |
| Side Height (1st Floor) | 4 m |
| Eave Height | 8 m |
| Ridge Height | A Frame Design: 9.7 m/10.5 m. Flat Frame Design: 9.4 m/9.72 m/10 m. |
| Bay Spacing | 5 m |
| Wind Loading | 115 MPH |
| Floor Loading Capacity | 250 kg/m²~500 kg/m² |
| Item | Specification |
| Roof Pitch | A Frame Design: 18° Flat Roof Design: 7° |
| Main Profile | 300 x 120 x 5 x 7 mm, 350 x 120 x 5 x 7 mm |
| Roof Options | Thermo Roof |
| Roof Fixing | Bar Tensioning |
| Eave Connection | Hot-dip Galvanized Twin Steel Plate |
| Framework Material | Hard Pressed Extruded Aluminium Alloy 6061/T6 |
| Cover Material | PVC-coated Polyester Textile, Opaque, Water proof, 850 g/m². Flame Retardant |
For More Information, Please Contact Sales Manager.

Every solution put into practice is a precise match between scenario and need

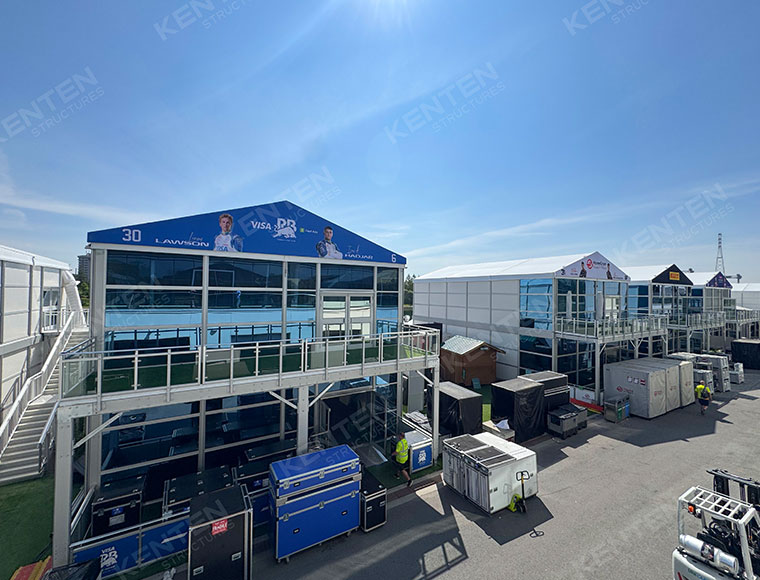

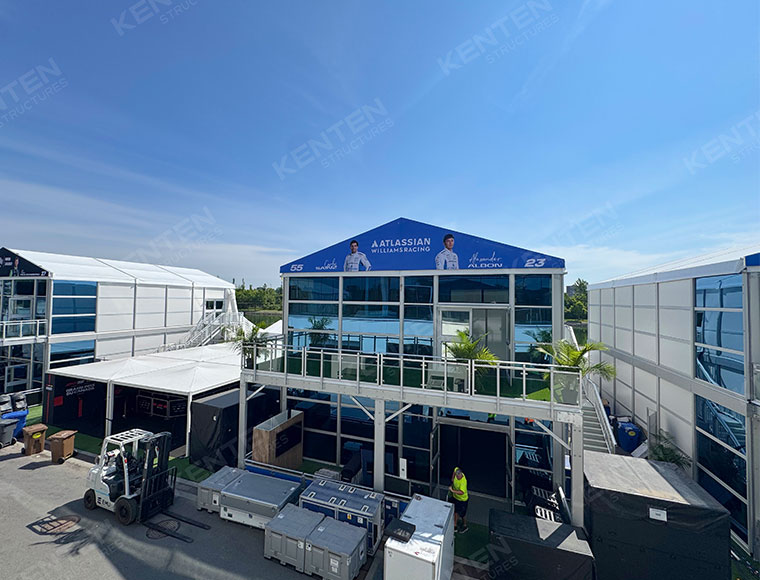

A: A double-layer tent is a unique two-story temporary structure that provides more space and flexibility for large gatherings, exhibitions, receptions and other events.
A: Take the KENTEN brand double-layer tent as an example. It adopts a modular design, is not only durable, but also fireproof. They are easy to assemble and are very suitable for temporary events.
Its structure is usually supported by a high-strength aluminum frame with a durable fire-resistant PVC cover. There are also optional configurations such as glass, ABS hard walls or sandwich panels to improve the overall appearance and insulation. As for the time to set up and dismantle, it mainly depends on the size and complexity of the tent. Thanks to the modular design, they can be assembled and dismantled quickly, and even large-scale construction projects can often be completed in just a few days.
