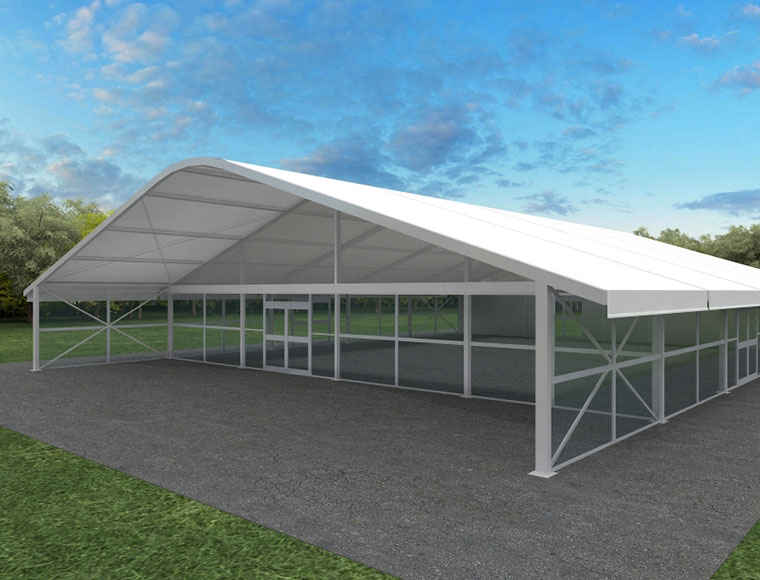

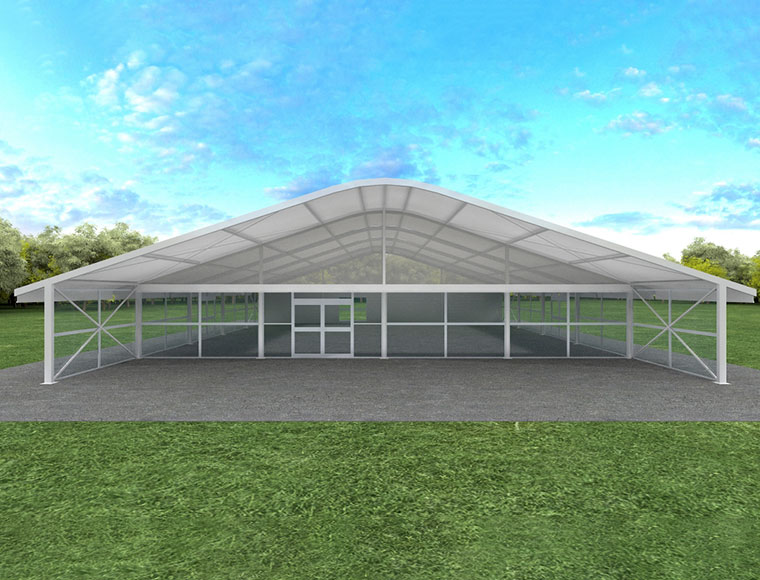

Curved Tent





The KENTEN Curved Tent blends modern aesthetics with superior engineering, making it the ideal choice for outdoor exhibitions, auto shows, weddings, sporting events, and large-scale gatherings. With its sweeping curved roof, this clear-span structure creates a striking architectural statement while delivering exceptional durability and all-weather performance.

INQUIRY ONLINE

Features
Specifications
Why Choose Us
Applications
Cases
FAQ

Features

Expansive Clear-Span Space

With widths of up to 60 meters and no interior columns, the Curved Tent offers a spacious, barrier-free interior that supports endless layout possibilities—from elaborate event decor to efficient warehouse storage.

High-Strength Construction

Built from 6061/T6 hard-pressed extruded aluminum alloy, the frame delivers superior strength, rigidity, and corrosion resistance—ensuring it remains stable and dependable for years of use.

All-Weather Protection

Sloped roof design deflects wind and prevents snow buildup.

Premium PVC-coated polyester fabric (850 g/m²) that is waterproof, UV-resistant, and flame-retardant (DIN 4102 B1).

Engineered to withstand winds up to 140 km/h.

Fully Customized

Tailor the size, color, and accessories to perfectly match your event theme. Choose from PVC, glass, ABS, sandwich panel, solid, or rock wool walls, plus optional flooring, glass doors, and integrated lighting or climate control.

Modular & Portable

Modular components allow for fast installation and dismantling, while the compact, transport-friendly design reduces logistics costs. Expansion is simple if you need more space in the future.

Long-Term Value

With a service life of more than 15 years and lower construction costs than permanent buildings, the Curved Tent is a smart, cost-effective solution for venues requiring large coverage areas.

Specifications

Span Width	Eave Height	Ridge Height	Bay Spacing	longest Component
3.00 m	2.70 m	3.10 m	3.00 m	3.20 m
10.00 m	4.00 m	5.40 m	5.00 m	5.30 m
15.00 m	4.00 m	6.20 m	5.00 m	5.80 m
20.00 m	4.00 m	7.00 m	5.00 m	8.00 m
25.00 m	4.00 m	7.90 m	5.00 m	10.40 m
30.00 m	4.00 m	8.70 m	5.00 m	10.50 m
40.00 m	4.00 m	10.30 m	5.00 m	10.50 m
50.00 m	4.00 m	12.00 m	5.00 m	11.30 m
60.00 m	4.00 m	13.60 m	5.00 m	11.30 m
Notes: Standard eave height 4.00 m, and 2.50 m – 6.00 m eave height is available upon request.

Frame	4 Channels, Hard Pressed Extruded Aluminium Alloy 6061/T6.
Cover Material	White/ Transparent/ Customized Color, PVC-coated Polyester Textile, Flame Retardant to DIN 4102 B1,M2,CFM.750 g-900 g/m²
Optional walls	1) 750 g/m² PVC Cover 2) Glass Wall 3) ABS Wall 4) Sandwich Wall 5) Hard Wall / Solid Wall 6) Rock Wool Wall
Wind Resistance	80~140 km/h
Fixing Solution	Ground Anchor, Expandable Bolt, Weight Plate, etc.
Service Life	More than 15 years
Applicable temperature range	-30 degree Celsius ~ +70 degree Celsius
Ground Situation	Grassland,Earth Land,Asphalt,Cement Ground,Marble,etc
Connectors	Expansion Bolts to Fix Tent
Additional Services	1) Provide video guidance for installation. 2) Provide engineering calculations for tent structure’s wind, snow, and seismic resistance. 3) Technical professionals provide on-site installation guidance services.

For More Information, Please Contact Sales Manager.

KENTEN Curved Tent VS Regular Curved Tent

	KENTEN Structures	Others
Aluminum	6061 T6 / 6082 T6	6063 T5 / 6005 T5
PVC Fire Retardant	B1,M2	B2
Wind Resistance	Up to 120 km/h	Up to 80 km/h

Why Choose KENTEN Curved Tents?

Proven Durability

Stronger frame, higher wind resistance, and better weatherproofing than standard curved tents.

Design Expertise

Structures that enhance your event’s aesthetics while meeting rigorous safety standards.

Customization Without Limits

From luxury decor to industrial use, we adapt every build to your specific needs.

Global Experience

Serving clients in over 100 countries with professional engineering, installation guidance, and after-sales support.

Applications

Trade Shows & Exhibitions

Weddings & Private Celebrations

Sporting & Entertainment Events

Commercial Activities

Video

Our Cases

Every solution put into practice is a precise match between scenario and need

2022 Formula 1 Miami Grand Prix

19th Asian Games – Hangzhou 2023

2008 Beijing Olympic Games

2022 Beijing Winter Olympic Games

2022 Formula 1 Montreal Grand Prix

2025 Doha Photography Exhibition

2025 Formula 1 Canadian Grand Prix

American Customer Customized Atrium Tent For Wedding

Customized Atrium Wedding Tent

Customized Warehouse Project For Chilean Customers

Customized Warehouse Project for Chilean Client

Toyota New-Car Launch Event

Frequently Asked Questions About Curved Tent

Q1: Is the installation process of the Curved tent complicated?

A: The Curved tent adopts a modular design and is relatively simple to install.

Q2: What events or uses are arc tents suitable for?

A: The curved tent has a spacious and barrier-free interior and a sturdy structure, which is suitable for a variety of events and uses.

Q3: Can the tent be customized to fit a specific event theme?

A: Yes! You can personalize the size and color of the tent. We also provide additional accessory options to create the perfect atmosphere for your party, such as floor systems and side walls.

Q4: Which size arc tent is suitable for my event?

A: Choosing the right size tent depends on the number of guests, the type of event, and the space required for the equipment or event. Our team of experts can help you determine the best size for your specific needs, ensuring that you have enough comfortable space and functions.
