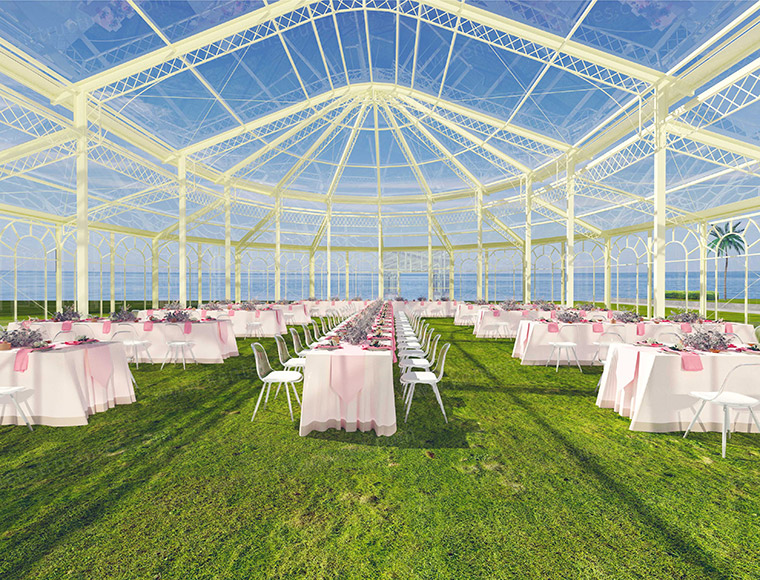

Atrium Structure





The KENTEN’s Atrium Tent is a striking, clear-span structure engineered to impress at first sight. Built with a high-strength aluminum frame and premium, flame-retardant PVC fabric, it delivers both style and substance. Its high ceilings, open floor plan, and optional fully transparent roof and walls create an unforgettable setting for upscale weddings, luxury parties, corporate events, exhibitions, and VIP experiences.

INQUIRY ONLINE

Features
Specifications
Why Choose Us
Applications
Cases
FAQ

Features

Panoramic Transparency

Fully transparent roof and sidewall panels invite natural daylight and create a breathtaking starlit ambiance at night.

Clear-Span Freedom

With no interior poles, the open layout allows limitless floor plan options and unobstructed views—perfect for creative decor and seamless guest flow.

Modular & Expandable

Built in 5-meter bays, the Atrium Tent can be quickly assembled, extended, or reconfigured to suit your event’s scale.

Fully Customized

From branded graphics and drapes to flooring, chandeliers, glass doors, and integrated climate control—every detail can be tailored to match your vision.

Built to Last

The 6061-T6 aluminum alloy frame offers superior strength and corrosion resistance, engineered to withstand winds up to 120 km/h (75 mph) and various weather conditions.

All-Weather Performance

Flame-retardant, waterproof, and UV-resistant PVC fabric ensures your event stays comfortable and protected year-round.

Specifications

Span Width	Length	Eave Height	Ridge Height	Bay Spacing
20 M	Unlimited	4 M/5 M	10 M	5 M
25 M			12.5 M
30 M			15 M
35 M			17.5 M
40 M			20 M

Aluminum Alloy Frame Material
Structure Frame Material	4 Channels, Hard Pressed Extruded Aluminium Alloy 6061/T6
Main Profile Size	20 M: 200 x 120 x 4 x 4.5 MM 25 M: 250 x 120 x 4 x 6 MM 30 M: 300 x 120 x 5/7 MM 35 M: 300 x 120 x 5 x 7 MM 40 M: 300 x 120 x 5 x 7 MM, 350 x 120 x 5 x 7 MM
Eave Connection/fixing	Hot-dip galvanized twin plate; Ground stakes or weight anchoring upon request

Detailed Inquiries, Please Contact Sales Manager.

KENTEN Atrium Structure VS Regular Atrium Structure

	KENTEN Structures	Others
Aluminum	6061 T6 / 6082 T6	6063 T5 / 6005 T5
PVC Fire Retardant	B1,M2	B2
Wind Resistance	Up to 120 km/h	Up to 80 km/h
Snow Load Capacity	Medium to High	Medium
Lifespan	20 years (frame)	10 years (frame)

Why Choose KENTEN Atrium Structure?

Premium Look

Modern, high-end design perfect for elegant venues and brand promotion

Structural Strength

Engineered to withstand wind loads up to 100 km/h (62 mph), suitable for various weather conditions

Modular & Expandable

Quick to install or dismantle, ideal for both short-term and semi-permanent use

Highly Customizable

Transparent roofs, branded graphics, glass doors, curtain walls—tailored to your vision

Global Experience

Over 25 years of industry expertise, serving customers in 100+ countries with full technical support

Applications

Outdoor Weddings & Luxury Celebrations

Corporate Galas & Brand Activities

Trade Shows & High-Profile Exhibitions

VIP Lounges for Sporting Events & Concerts

Video

Our Cases

Every solution put into practice is a precise match between scenario and need

2022 Formula 1 Miami Grand Prix

19th Asian Games – Hangzhou 2023

2008 Beijing Olympic Games

2022 Beijing Winter Olympic Games

2022 Formula 1 Montreal Grand Prix

2025 Doha Photography Exhibition

2025 Formula 1 Canadian Grand Prix

American Customer Customized Atrium Tent For Wedding

Customized Atrium Wedding Tent

Customized Warehouse Project For Chilean Customers

Customized Warehouse Project for Chilean Client

Toyota New-Car Launch Event

Frequently Asked Questions About Atrium Structure

Q1: Can the Atrium Tent be used in harsh weather?

A: Absolutely. It’s engineered to handle wind speeds up to 120km/h and can be equipped with insulation or climate control systems to adapt to hot, cold, or rainy conditions.

Q2: Can we customize the tent?

A: Yes! You can choose transparent roofs or walls, add custom logos, glass panels, side curtains, lighting, and much more.

Q3: How long does it take to install?

A: For a 25x25m tent, our professional crew can complete installation in 1~2 days. Time may vary based on size and accessories.
